The Hyundai CVVT engine (Continuously Variable Valve Timing) is one of Hyundai’s most innovative technologies, designed to enhance performance, improve fuel efficiency, and reduce emissions. Understanding how this system works is crucial for automotive professionals, technicians, and enthusiasts who want to diagnose issues, interpret fault codes, and carry out maintenance with confidence.
This comprehensive Hyundai CVVT engine training programme is designed not only to expand your knowledge but also to provide practical diagnostic insights. By the end of this article, you will understand the working principle, components, inspection methods, common issues, and troubleshooting procedures of Hyundai’s CVVT diesel engines.
Whether you are a student, mechanic, or simply an automotive enthusiast, this guide will serve as a valuable resource to master Hyundai’s advanced CVVT system.
What is Hyundai CVVT Technology?
Definition of CVVT
CVVT (Continuously Variable Valve Timing) is a system that automatically optimizes the timing of the intake and exhaust valves depending on driving conditions. Instead of fixed valve timing, CVVT continuously adjusts to achieve the perfect balance between performance and efficiency.
Key Benefits of CVVT in Hyundai Engines
- Enhanced Power Output – Adjusting valve timing helps increase engine power at higher RPMs.
- Improved Fuel Economy – Better combustion efficiency reduces fuel consumption.
- Lower Emissions – CVVT reduces harmful exhaust gases by optimizing air-fuel mixture.
- Smooth Driving Experience – Provides seamless power delivery under different loads.
Components of the Hyundai CVVT Engine
To fully grasp how the CVVT system operates, let’s explore its main components:
- Camshaft & Crankshaft – Work in synchronization with the CVVT system.
- CVVT Actuator (Phaser) – Adjusts the camshaft angle in real time.
- Oil Control Valve (OCV) – Regulates oil flow to the CVVT actuator.
- Engine Control Module (ECM) – The brain that controls CVVT operation based on sensor data.
- Sensors – Including crankshaft position sensor, camshaft position sensor, and oil pressure sensor.
Each of these plays a critical role in ensuring that the CVVT system functions effectively under various driving conditions.

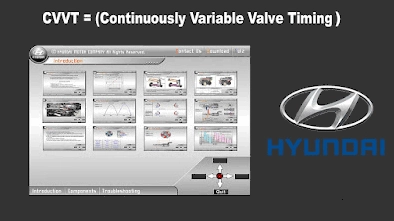

Pictures from the training program:
How Does Hyundai’s CVVT Engine Work
The working principle of the CVVT system revolves around variable control of the intake and exhaust valves.
- Low RPM (Idling or Cruising) – The valves open later, reducing overlap, which improves fuel efficiency and minimizes emissions.
- High RPM (Acceleration or Load Conditions) – The valves open earlier, increasing overlap, which allows more air-fuel mixture for better combustion and performance.
- Real-Time Adjustments – The ECM processes signals from sensors and sends commands to the OCV, which adjusts the actuator to optimize timing instantly.
This dynamic adjustment ensures maximum performance when needed and efficiency during light driving conditions.
Fault Diagnosis in Hyundai CVVT Engines
One of the primary objectives of this training programme is to help technicians diagnose faults and interpret fault codes effectively.
Common Fault Symptoms
- Engine misfiring or rough idling.
- Reduced power or sluggish acceleration.
- Increased fuel consumption.
- Check Engine Light (CEL) illuminated.
- Abnormal noise from the engine head.
Common Fault Codes (DTCs) for CVVT Systems
Some frequent Diagnostic Trouble Codes (DTCs) you may encounter include:
- P0010 – Camshaft Position Actuator Circuit (Bank 1).
- P0011 – Camshaft Timing Over-Advanced (Bank 1).
- P0012 – Camshaft Timing Over-Retarded (Bank 1).
- P0016 – Crankshaft-Camshaft Position Correlation Error.
Each of these codes points to specific problems within the CVVT system and requires a structured inspection process.
Inspection Methods for CVVT Faults
When diagnosing a Hyundai CVVT engine, follow these inspection methods:
- Visual Inspection – Check for oil leaks, damaged wiring, or clogged oil passages.
- Oil Quality Check – Dirty or low-quality oil is a common cause of CVVT malfunctions.
- Sensor Testing – Use a multimeter or scanner to verify crankshaft and camshaft sensor signals.
- OCV Function Test – Inspect the oil control valve for proper operation.
- Actuator Check – Verify that the CVVT actuator responds correctly to ECM signals.
Properly following these steps ensures accurate fault detection and avoids unnecessary part replacement.
Hyundai CVVT Engine Training Programme – Download
To support technicians and students, Hyundai has developed a dedicated CVVT training programme. This programme provides diagrams, case studies, and diagnostic steps to enhance understanding.
👉 Download Links:
The downloadable programme includes:
- Detailed diagrams of the CVVT system.
- Step-by-step diagnostic procedures.
- Example fault codes and troubleshooting methods.
- Real-world case studies.
Advantages of Following the Training Programme
By going through this Hyundai CVVT engine training programme, you gain:
- Better Diagnostic Skills – Identify CVVT-related problems quickly.
- Enhanced Efficiency – Save time during inspections and repairs.
- Technical Confidence – Handle Hyundai engines professionally.
- Career Growth – Improve your skills as an automotive technician.
Tips for Maintaining Hyundai CVVT Engines
To avoid costly repairs, proper maintenance is essential:
- Use Recommended Engine Oil – Always use high-quality oil with the correct viscosity.
- Regular Oil Changes – Dirty oil clogs the OCV and actuator, leading to malfunctions.
- Inspect Sensors Regularly – Faulty sensors can give incorrect readings to the ECM.
- Check Engine Codes Immediately – Never ignore a Check Engine Light.
By following these tips, you can extend the life of your Hyundai CVVT engine and avoid unnecessary downtime.
