The Ultimate Diesel ECU Bench Testing Rig: Mastering YC600, PD60+, and MN300 for Professional Diagnostics

In the high-stakes world of modern diesel engine repair, guesswork is the enemy of profitability. For professional mechanics and shop owners in the United States, “trial and error” parts replacement is no longer a viable strategy. Customers demand fast, accurate, and definitive results.

The most effective way to achieve this is through Diesel ECU Bench Testing. By moving the diagnostic process from the engine bay to the workbench, you eliminate variables like faulty wiring harnesses or mechanical engine wear.

To build a world-class testing environment, you need a specialized ecosystem. The combination of the YC600, PD60+, and MN300 represents the “Gold Standard” for off-car ECU simulation.

Why Bench Testing is the Future of Diesel Diagnostics

Traditional on-vehicle diagnostics are often hindered by intermittent electrical shorts, heat, and vibrations. ECU Bench Testing (testing the Electronic Control Unit in a controlled environment) allows you to:

• Isolate the ECU: Determine instantly if the “brain” is the problem or if the issue lies in the vehicle’s hardware.
• Simulate Real-World Conditions: Replicate high RPMs or specific sensor failures safely.
• Increase Shop Throughput: Free up your service bays while you diagnose the electronics on a desk.

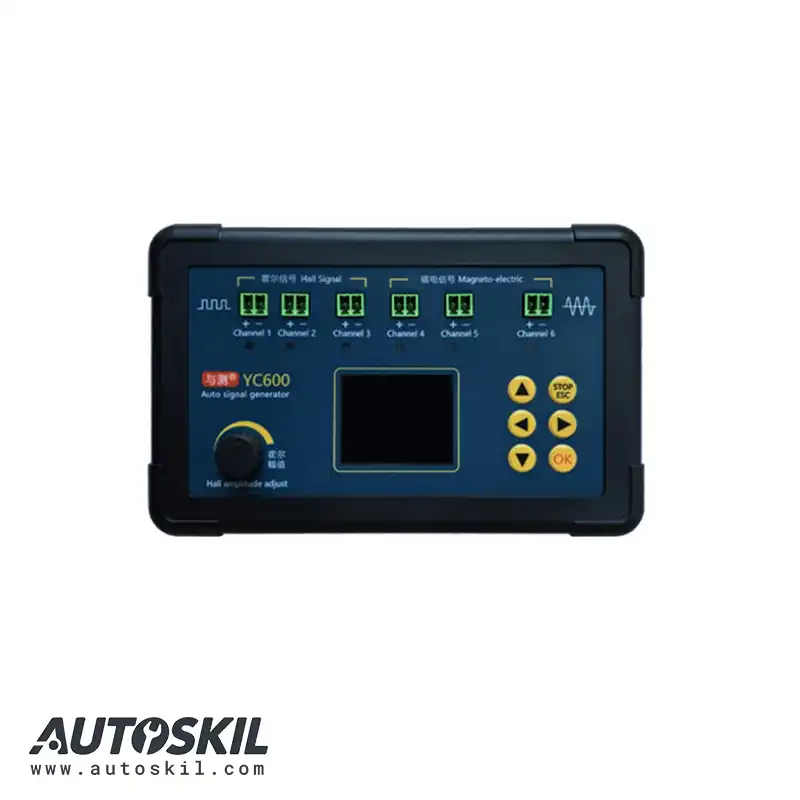

1. YC600 ECU Tester: The Pulse of the System

The YC600 is a professional CKP/CMP Signal Generator. Without a valid timing signal, a diesel ECU will never “wake up” or trigger the injectors.

• Core Function: It simulates the Crankshaft Position (CKP) and Camshaft Position (CMP) signals.
• Why it’s essential: It tricks the ECU into thinking the engine is cranking or running. This is the first step in any bench-flashing or diagnostic procedure.
• Key Feature: It allows for adjustable engine speeds, letting you test how the ECU behaves during cold starts versus high-speed operation.

🛒 Get the YC600 ECU Tester – Buy It Now

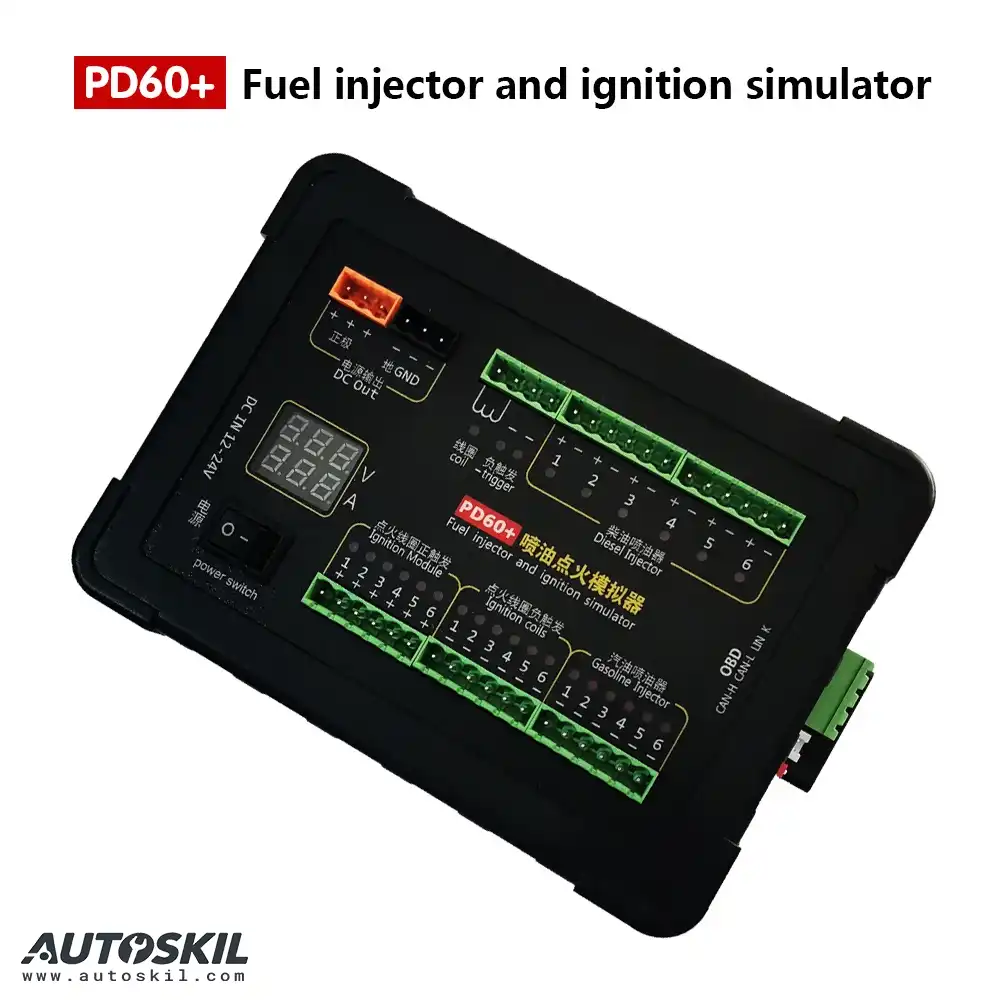

2. PD60+ Injector & Solenoid Simulator

Once the ECU is “running” via the YC600, you need to see if it’s actually commanding the fuel system. This is where the PD60+ Fuel Injector Simulator becomes indispensable.

• Core Function: It simulates the electrical load of Common Rail Injectors and IMV/MPROP (Inlet Metering Valves).
• Advanced Diagnostics: Instead of risking damage to real injectors, the PD60+ uses LED indicators and signal feedback to show you exactly when and how the ECU is firing.
• The Profit Edge: It helps you prove to a customer whether an injector failure is electrical (ECU driven) or mechanical (clogged/leaking nozzle), preventing unnecessary expensive replacements.

🛒 Get the PD60+ Injector Simulator – Buy It Now

3. MN300: Common Rail Pressure & Pedal Simulator

A diesel engine’s performance is dictated by two main inputs: how hard the driver is pressing the gas and how much pressure is in the fuel rail. The MN300 handles both.

• Core Function: It simulates the Rail Pressure Sensor voltage and the Accelerator Pedal (APP) signals.
• Dynamic Testing: With the MN300, you can manually sweep the voltage to simulate “High Pressure” or “Low Pressure” scenarios.
• Troubleshooting Limp Mode: It is the perfect tool for diagnosing why an ECU is stuck in Limp Mode or why it’s throwing “Fuel Rail Pressure” codes.

🛒 Get the MN300 Sensor Simulator – Buy It Now

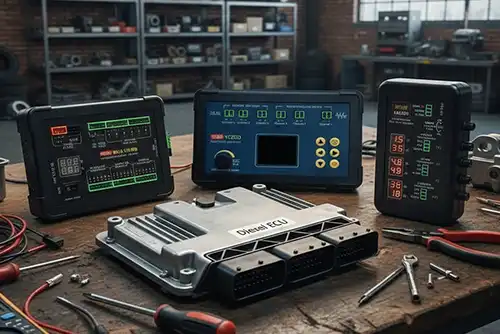

The Power of Integration: A Complete Diagnostic Ecosystem

While each tool is powerful alone, they are designed to work as a Modular Diagnostic System.

1. YC600 provides the “Heartbeat” (RPM).
2. MN300 provides the “Environment” (Pressure & Load).
3. PD60+ monitors the “Output” (Injection & Regulation).

Together, they allow you to perform a 100% accurate health check on Bosch, Delphi, Denso, and Continental diesel ECUs without ever opening the vehicle’s hood.

Conclusion: Investing in Precision

For any modern diesel repair shop, the YC600, PD60+, and MN300 are not just tools—they are an investment in diagnostic accuracy. By reducing diagnostic time and eliminating “comebacks,” these devices pay for themselves in a matter of weeks.

If you want to move from “Parts Changer” to “Master Technician,” mastering the Diesel ECU Bench Test is the definitive path forward.
